Atom-MINI - is a radiation detector that rates and indicates the level of radiation background notifying the owner about the danger of its exceeding. Atom-mini permanently, twenty fours hours rates radiation background without requiring any control or calibration. Finding dangerous radiation levels for the shortest term (no more, than in 20 seconds), it notifies the user on such excess by peep.
Made by
Technical characteristics.
Range of evaluated exposure rate 0.5...................2000 uSv/h
Energy range of detected gamma radiation............50 Kev – 3 Mev
Energy range of detected beta radiation.................1 – 10 Mev
Power supply........................................................3V CR1620 lithium battery
Response time at 1 uSv/h dose rate......................less than 30 s
Response time at 10 uSv/h dose rate....................less than 5 s
Battery lifetime under normal environmental conditions and
dose rate less than 0.2 uSv/h...............................more than 180 days
Operating temperature range...............................-20...+60° C (-4...+140° F)
Overall dimensions...............................................21 x 56 mm (0.82 x 2.2 in)

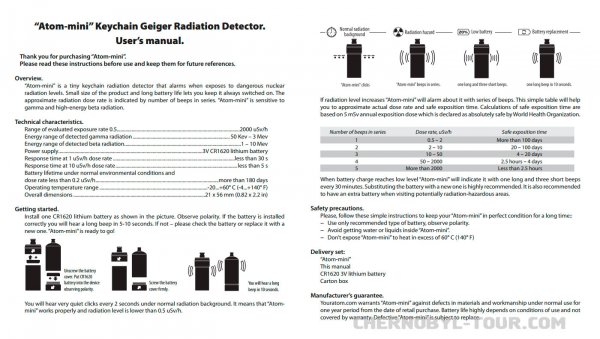

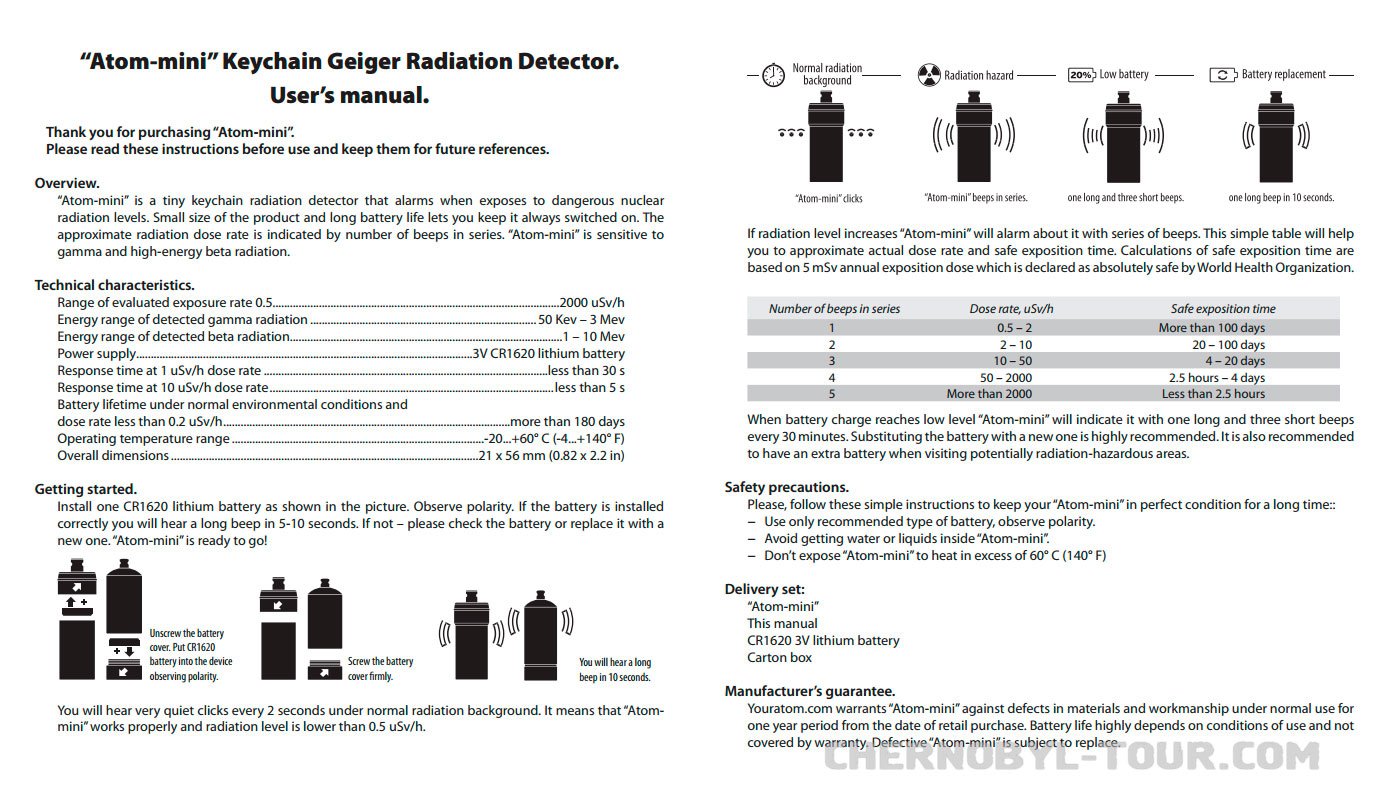

Instruction for use:
warrants "Atom-mini” against defects in materials and workmanship under normal use for
one year period from the date of retail purchase. Battery life highly depends on conditions of use and not
covered by warranty. Defective "Atom-mini” is subject to replace.
YourATOM.com.
